Post-Deployment DNS Configuration

This section is relevant only if you are using your own domain name to setup a Gitpod cell. That is, a non gitpod.cloud domain name is being used.
Once your CF stack creation has successfully completed, you have to make sure than the domain names you are going to use to access the Gitpod setup is pointing to the right loadbalancer Domain names. We create two Network loadbalancers as part of our setup, that points to different EKS clusters. You will find the DNS names of both these loadbalancers in the output of your CF stack as shown below:

Instance Configuration

You can now go ahead and complete the DNS configuration as follows:
  • Navigate to the DNS zone that controls your domain.
  • Add a record the following CNAME records:
    • From yourcustomdomain.com to Meta Loadbalancer DNS name
    • From *.yourcustomdomain.com to Meta Loadbalancer DNS name
    • From *.ws.yourcustomdomain.com to Workspace Loadbalancer DNS name

​
Exposing public API

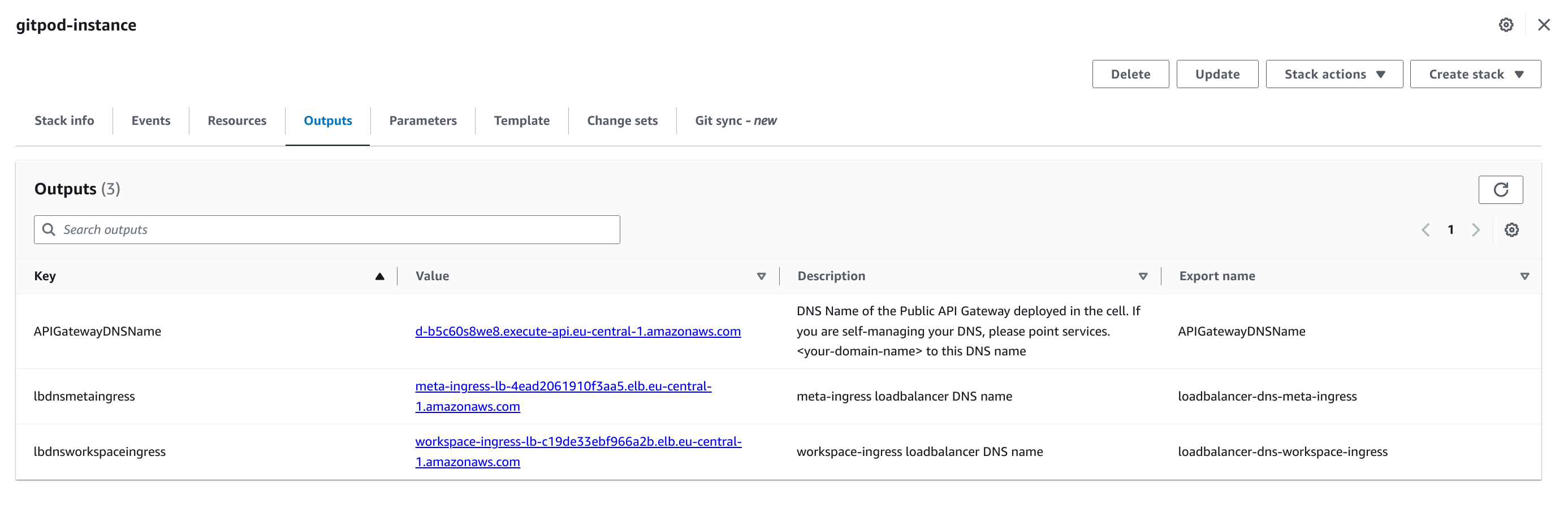

If you chose Yes to Expose Gitpod webhooks and IDP services publicly? Option in your CF template parameters, then you will have a public API Gateway Created with a static DNS name, to which you will have to point a certain subdomain to. You will find the static domain in the output of your template as follows:

Instance Configuration

You can now go ahead and complete the DNS configuration for API Gateway as follows:
  • Navigate to the DNS zone that controls your domain.
  • Add a record the following CNAME records:
    • From services.yourcustomdomain.com to API Gateway DNS name
    • From yourcustomdomain.com to Meta Loadbalancer DNS name
    • From *.yourcustomdomain.com to Meta Loadbalancer DNS name
    • From *.ws.yourcustomdomain.com to Workspace Loadbalancer DNS name
That should be it!
