Installing Gitpod Self-Hosted

Note: Setting up a self-hosted Gitpod instance needs some Kubernetes experience. Detailed guidance on how to setup and maintain a Kubernetes cluster is behind the scope of these docs. Please also see the prerequisites below.

Prerequisites

These prerequisites are fulfilled already if you used one of the reference architectures. We strongly encourage the use of these reference architectures. Please see the requirements for more information on what Gitpod needs to function.

Kubernetes Cluster

Gitpod is a Kubernetes application that uses Kubernetes internally to provision workspaces as Kubernetes pods. Before you can start installing Gitpod, you need to create a compatible Kubernetes cluster. The reference architectures will help you to get started with your favorite cloud provider. If you are creating a cluster yourself, it’s up to you to set up a cluster that meets the requirements.

Cert-Manager installed on the cluster

Once you have created your Kubernetes cluster you need to install cert-manager. cert-manager is needed even when you bring your own TLS certificate for your domain. Please consider the cert-manager documentation on how to install it.

DNS and TLS configured

To install Gitpod you need a domain with a TLS certificate. The DNS setup to your domain needs to be configured such that it points to the ingress of your Kubernetes cluster. You need to configure your actual domain (say example.com) as well as the wildcard subdomains *.example.com and *.ws.example.com. Alternatively, you can rely on a configured Issuer/ClusterIssuer plus a Certificate (that also includes the wildcard domains) for cert-manager:

Creating TLS certs for your domain with cert-manager

cert-manager provides the Gitpod installation with certificates for internal communication. Besides this, cert-manager can also create a TLS certificate for your domain. Since Gitpod needs wildcard certificates, you must use the DNS-01 challenge. Please consult the cert-manager documentation for instructions. You can use either an Issuer or ClusterIssuer.

Following the cert-manager instructions, you will have an Issuer or ClusterIssuer with a configured dns01 solver (most probably with a proper secret with credentials for your DNS provider) as well a Certificate with the following dnsNames:

  • example.com
  • *.example.com
  • *.ws.example.com

(replace example.com with your Gitpod domain)

Install Gitpod

To start with installing Gitpod, you need a terminal where you can run kubectl against your cluster. First, install the KOTS kubectl plugin:

language icon language:
bash
curl https://kots.io/install | bash

Now, you are ready to install Gitpod. Run the following command in your terminal:

language icon language:
bash
kubectl kots install gitpod

You will be asked for the namespace you want to install Gitpod to as well as a password for the admin console. After some time, you will see the following output:

  • Press Ctrl+C to exit
  • Go to http://localhost:8800 to access the Admin Console

Open your favorite browser and go to http://localhost:8800 (port 8800 is opened on your node on localhost only—you may want to forward the port to your workstation in order to access the admin console).

The first page will ask you to upload your Gitpod license which you can get here For more information about our licenses and respective pricing plans, please visit our self-hosted pricing page.

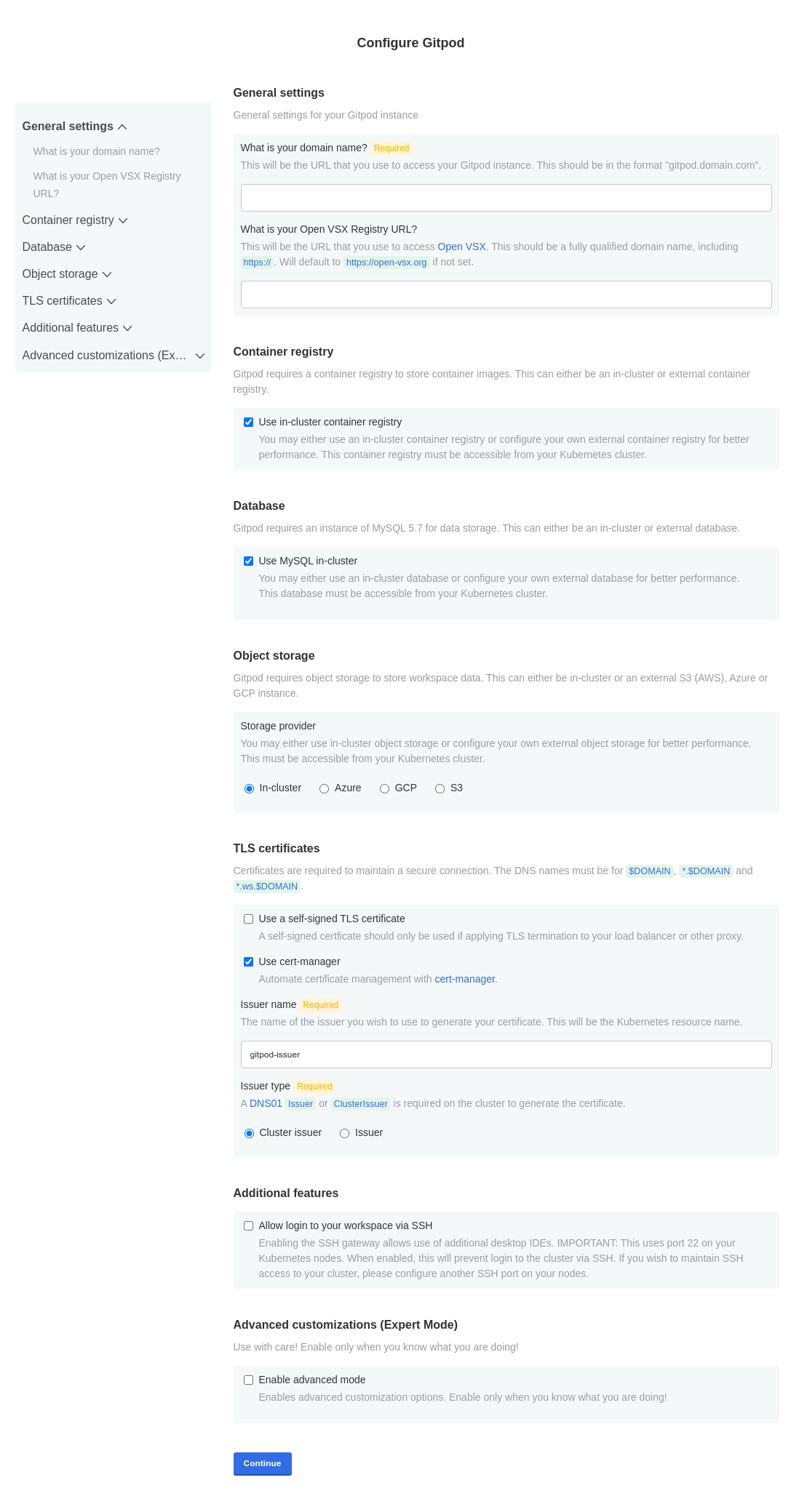

After uploading the license, you will be forwarded to the config page. On this page, you need to enter your domain name for your Gitpod installation. You can also configure to use external components (by default internal ones are installed) as well as your TLS certs setup or your workspace size. Click “Continue” to proceed with the installation.

kots-install-config

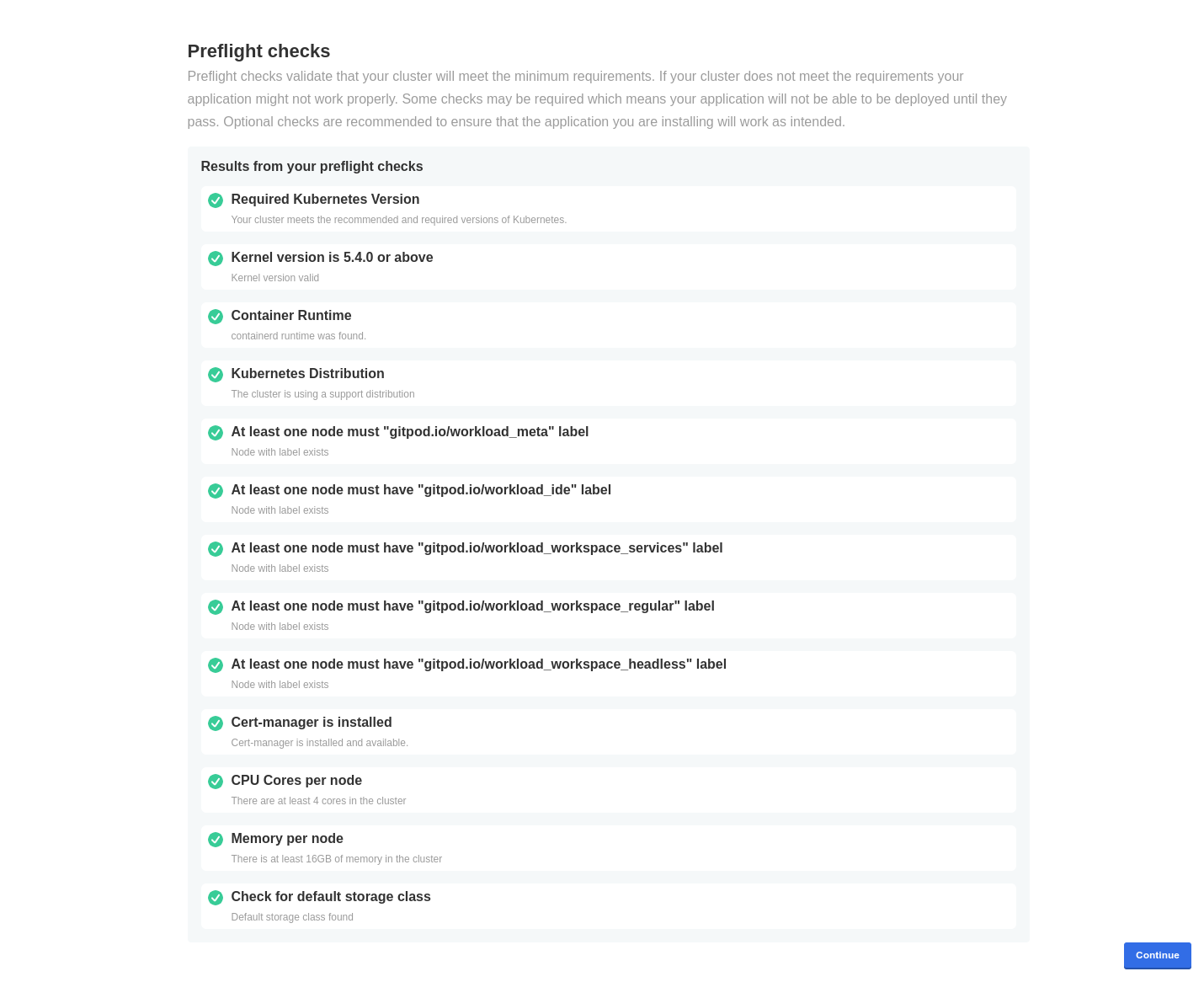

In the next step, the installer runs a preflight check. This validates your cluster meets the minimum requirements. Everything is green? Awesome! Click “Continue” to proceed.

kots-preflights-results

Now, you are seeing the installation admin page. Once the installation has been finished successfully, you will see the status “Ready” with a small green indicator next to the Gitpod logo. You will also see which version you installed and which license you are using.

kots-admin-dashboard

Open your Gitpod domain in your browser to access your running Gitpod instance. You should be greeted by the following screen:

welcome screen

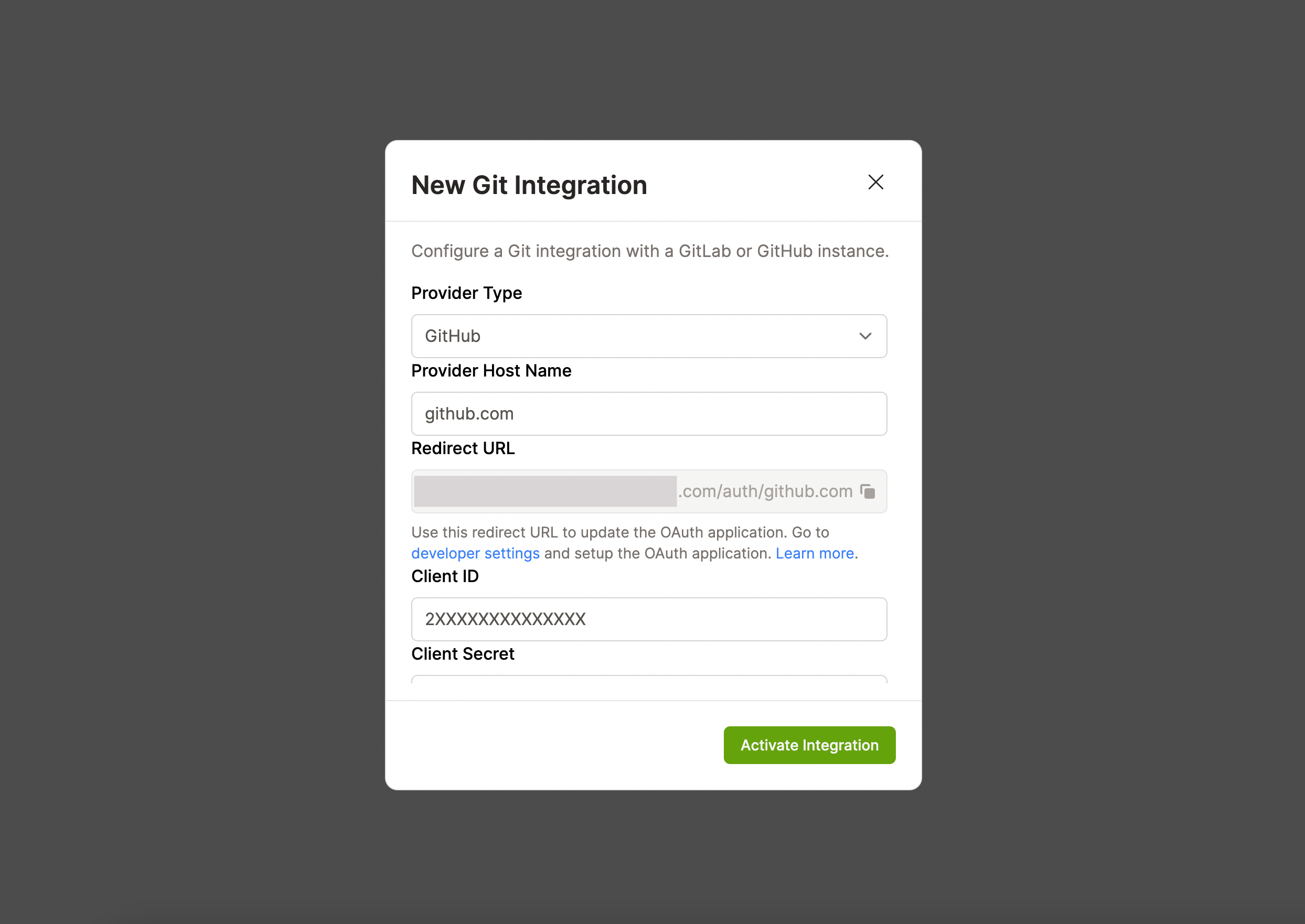

You will then be asked to configure a git integration:

git integration setup

This git integration will also serve as the way that you and your users get authenticated against your Gitpod installation. You can find out more in the Integrations section.

Important: Public (SaaS) Source Control Management Systems (SCMs) (i.e. GitLab.com, GitHub.com and Bitbucket.org) are not integrated by default with a Self-Hosted Gitpod instance because OAuth apps are tied to domains. Therefore, these public SCMs need to be integrated manually with an OAuth application you specifically create for your domain. This is done similarly to how it is done for the private/self-hosted versions of each SCM. As such their respective guides also apply here:

  • Follow these steps to integrate GitLab.com with your self-hosted Gitpod instance. You will need to enter gitlab.com as the Provider Host Name in the New Git Integration Modal.
  • Follow these steps to integrate GitHub.com with your self-hosted Gitpod instance. You will need to enter github.com as the Provider Host Name in the New Git Integration Modal.
  • Follow these steps to integrate Bitbucket.org with your self-hosted Gitpod instance. Select Bitbucket as the Provider Type in the New Git Integration Modal. For bitbucket.org this requires configuring an “OAuth consumer” on a “workspace”. This is slightly different from the documented Bitbucket Server integration. See gitpod PR #9894 for an example.

Note: Your first workspace start can take a bit of time because the workspace image first needs to be built and then downloaded. Subsequent workspace starts should be much quicker.

Once you are all set up, you can visit the getting started with Gitpod page to start learning about using Gitpod. You should also familiarise yourself with our guides around operating Gitpod Self-Hosted, especially the guide that explains how to update Gitpod.
