Microsoft Entra ID

​

Prerequisites

• Access to Microsoft Entra admin center

​

Create an OIDC application

1. On the Microsoft Entra admin center, navigate to Identity > Applications
2. Select New Registration

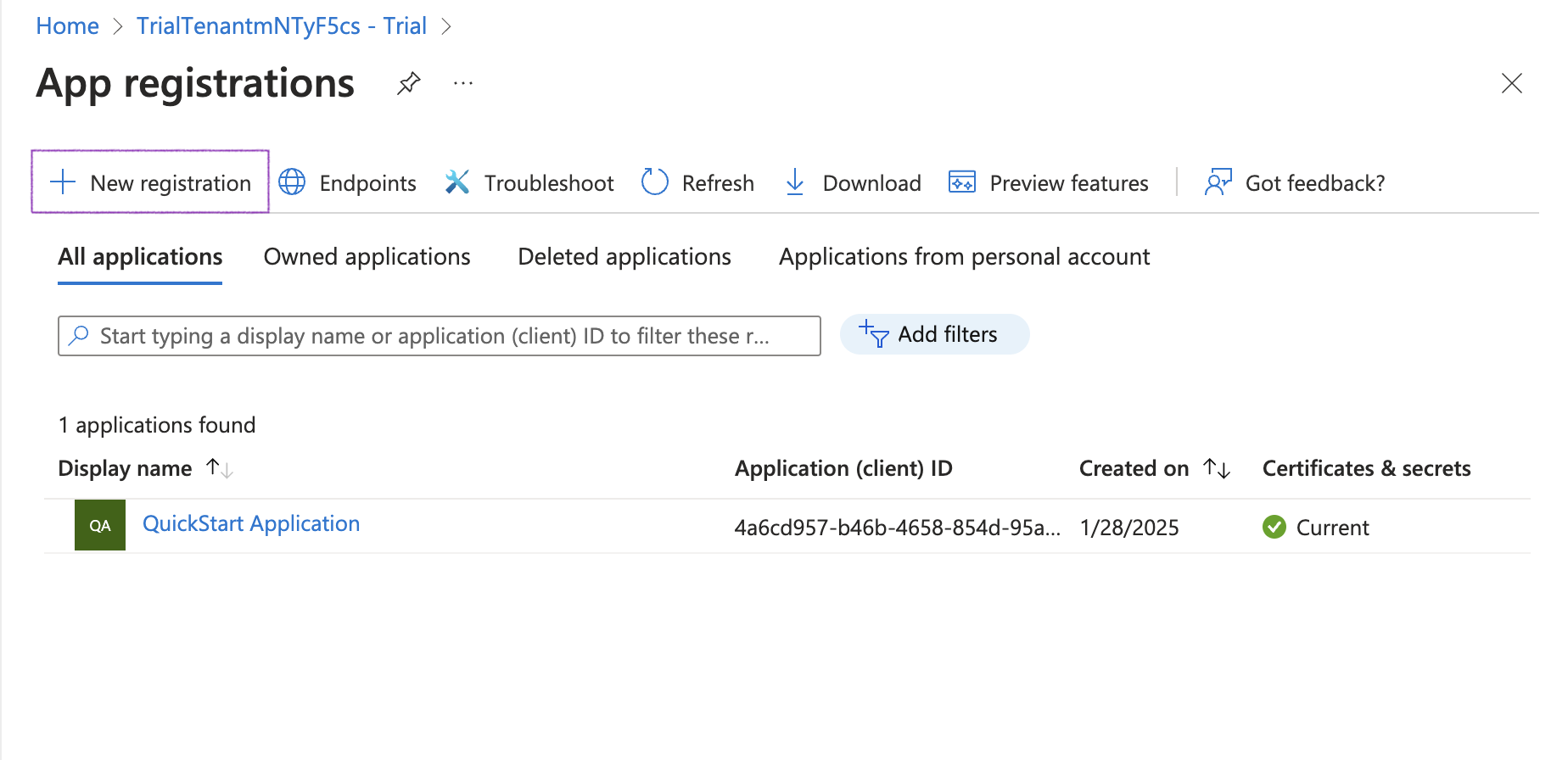

   New Registration
3. Specify General Settings
   • App name, e.g. Gitpod
   • Platform: Web
   • Redirect URI: https://app.gitpod.io/auth/oidc/callback
   •

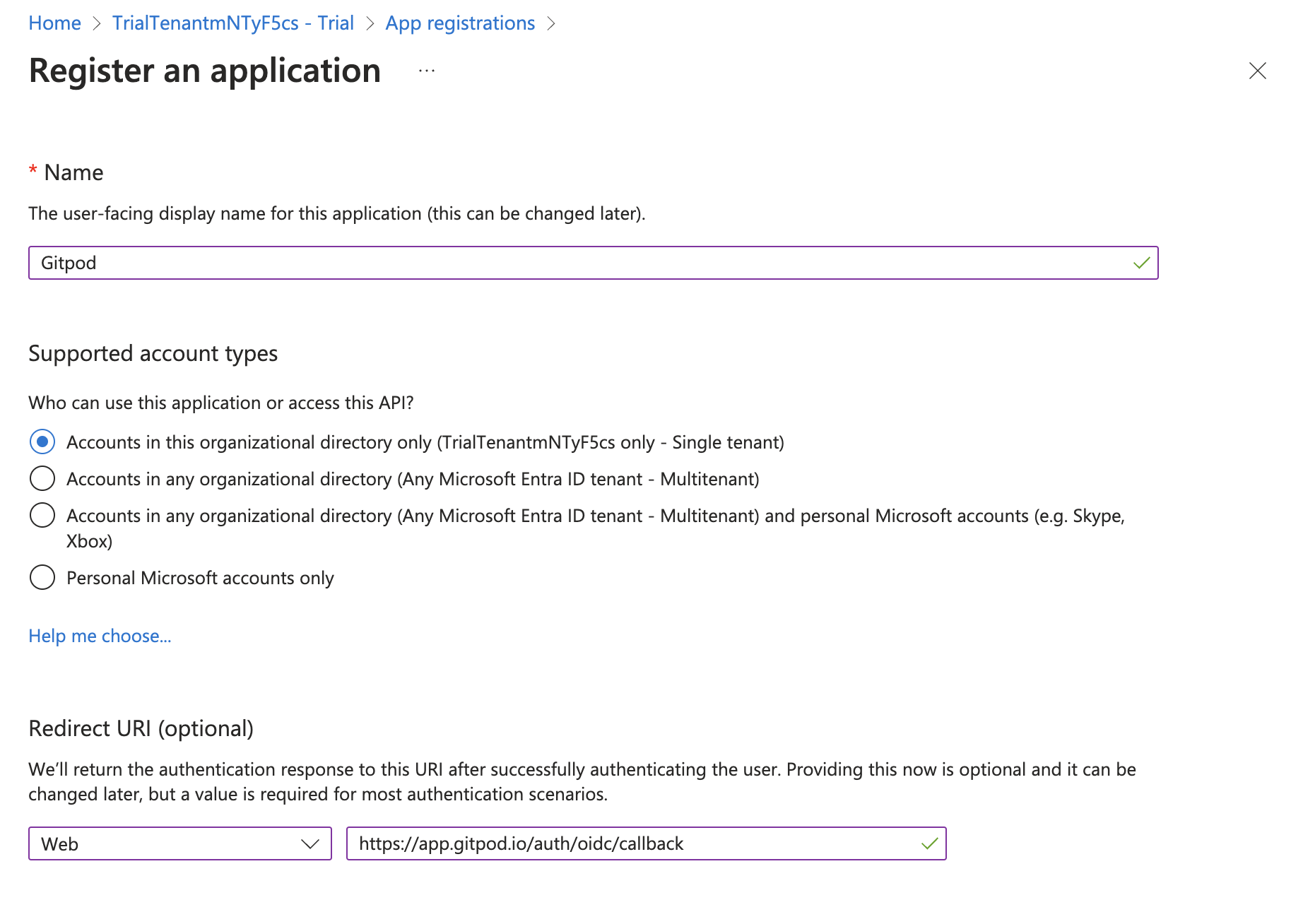

     Register Application
4. Obtain Client Secret from the Certificates & secrets page
   • Once the application is registered, navigate to the subpage Certificates & secrets to create and obtain a new client secret.
     • Click the New client secret button

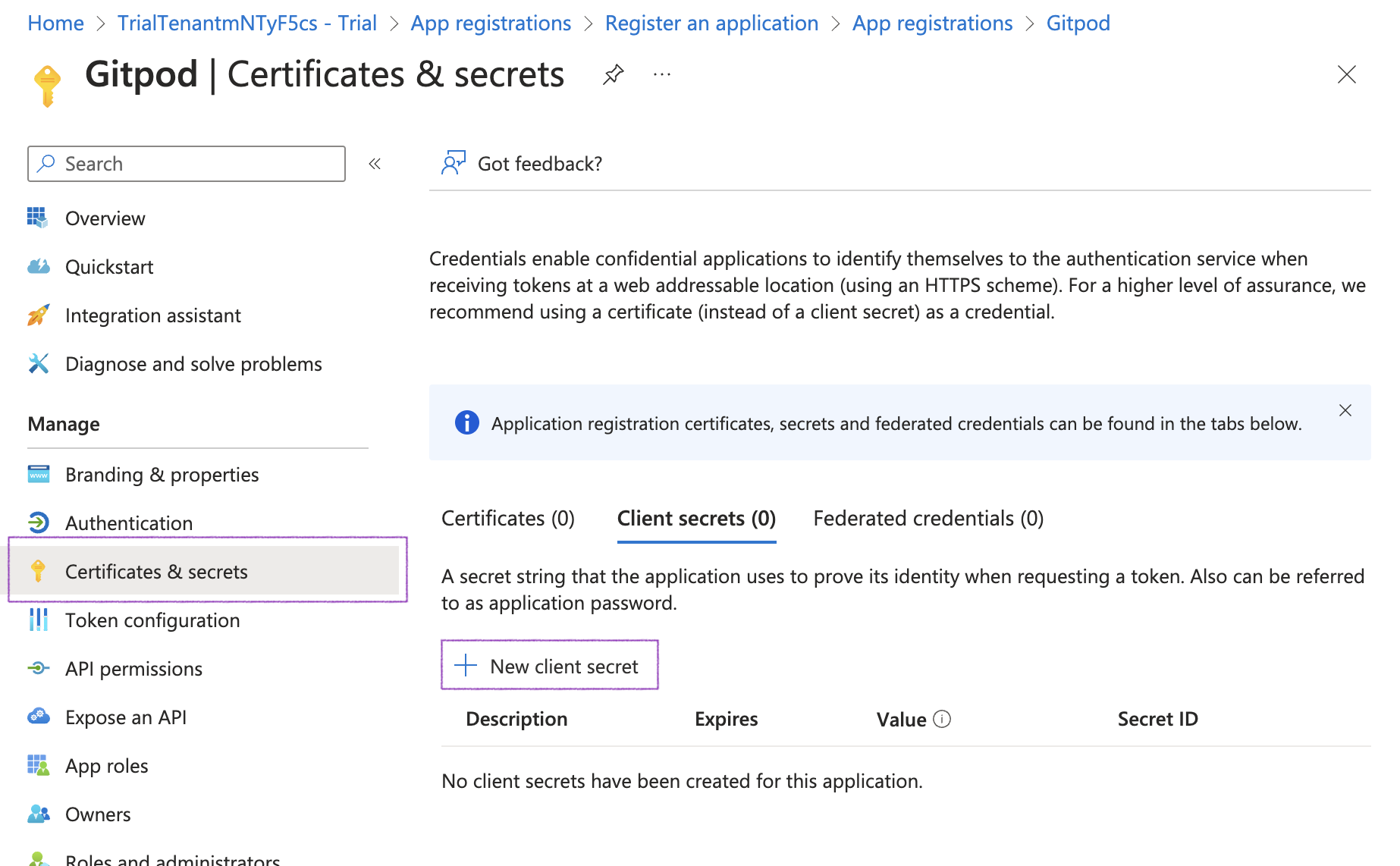

       New client secret
     • Adjust the expiry of the client secret

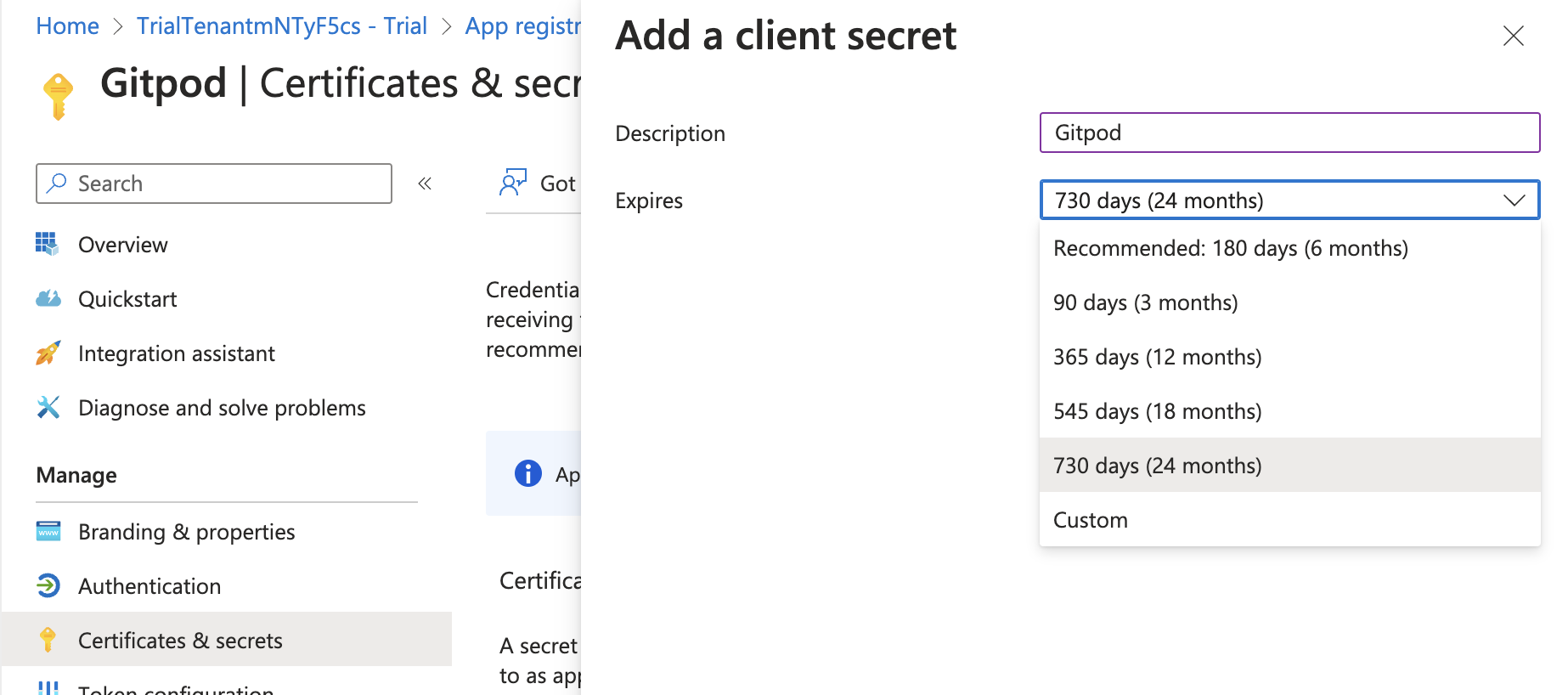

       Client secret expiry

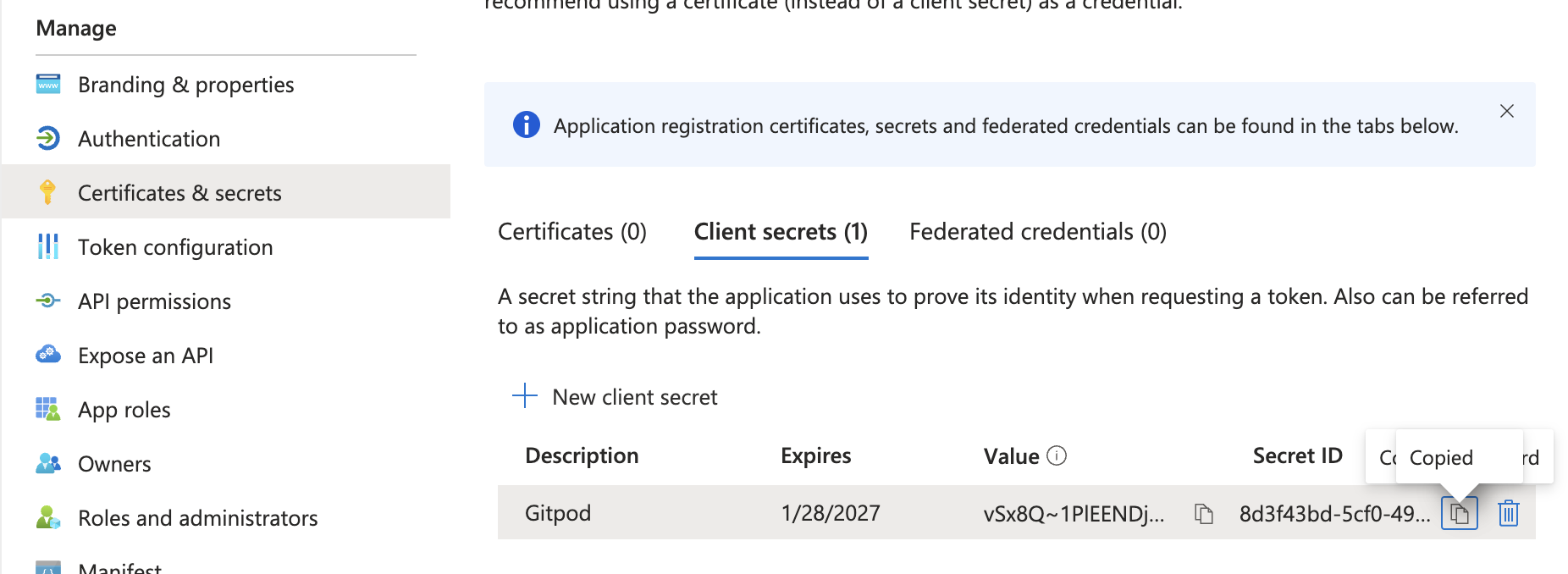

     • Then copy the value of the client secret to be pasted in Gitpod’s SSO setup


       Client secret expiry
5. Configure OIDC Scopes
   • The default selection of OIDC scopes in Microsoft Entra ID doesn’t meet the requirements for Gitpod. Please navigate to API permissions > Add a permission to make the necessary changes.

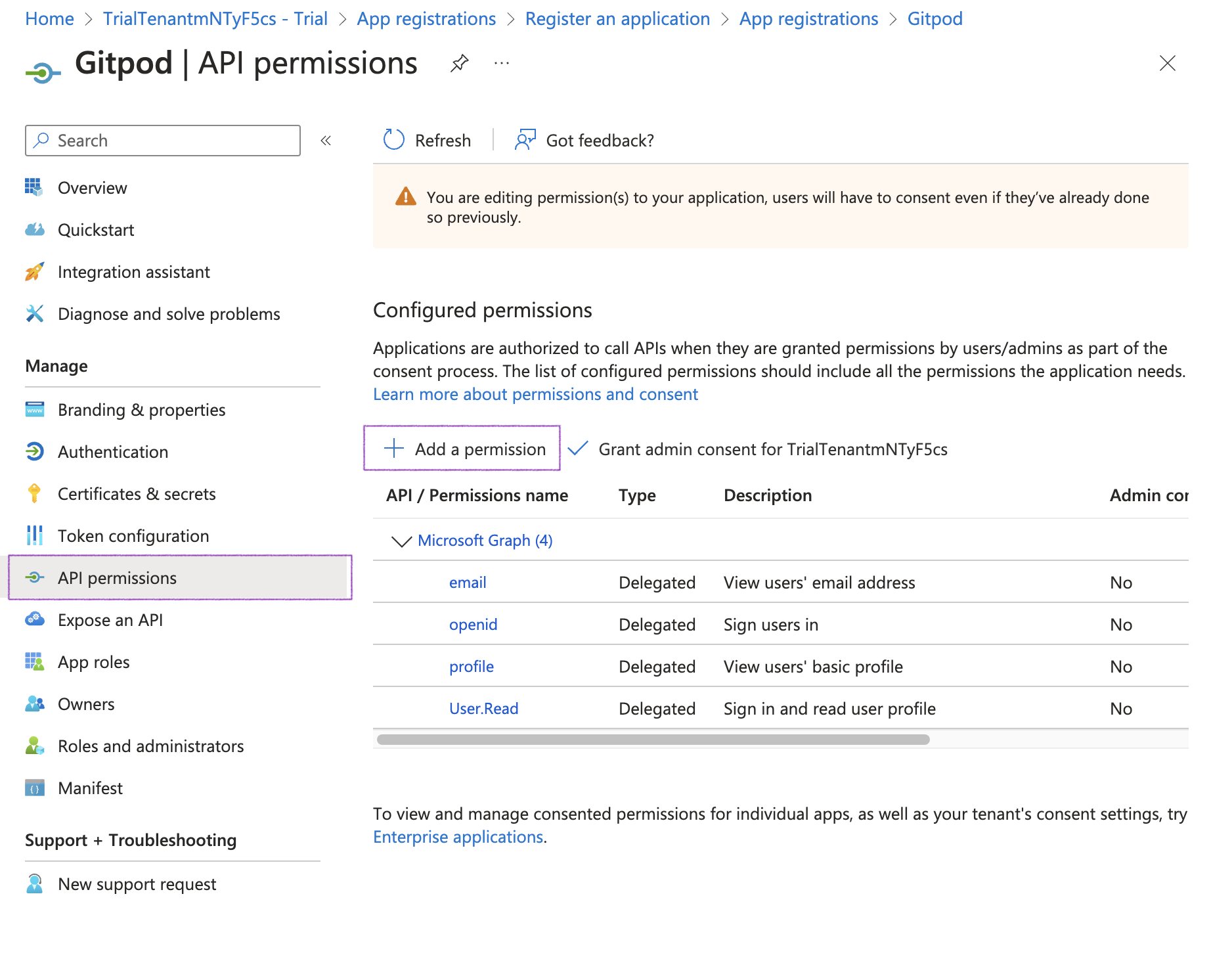

     Add a permission

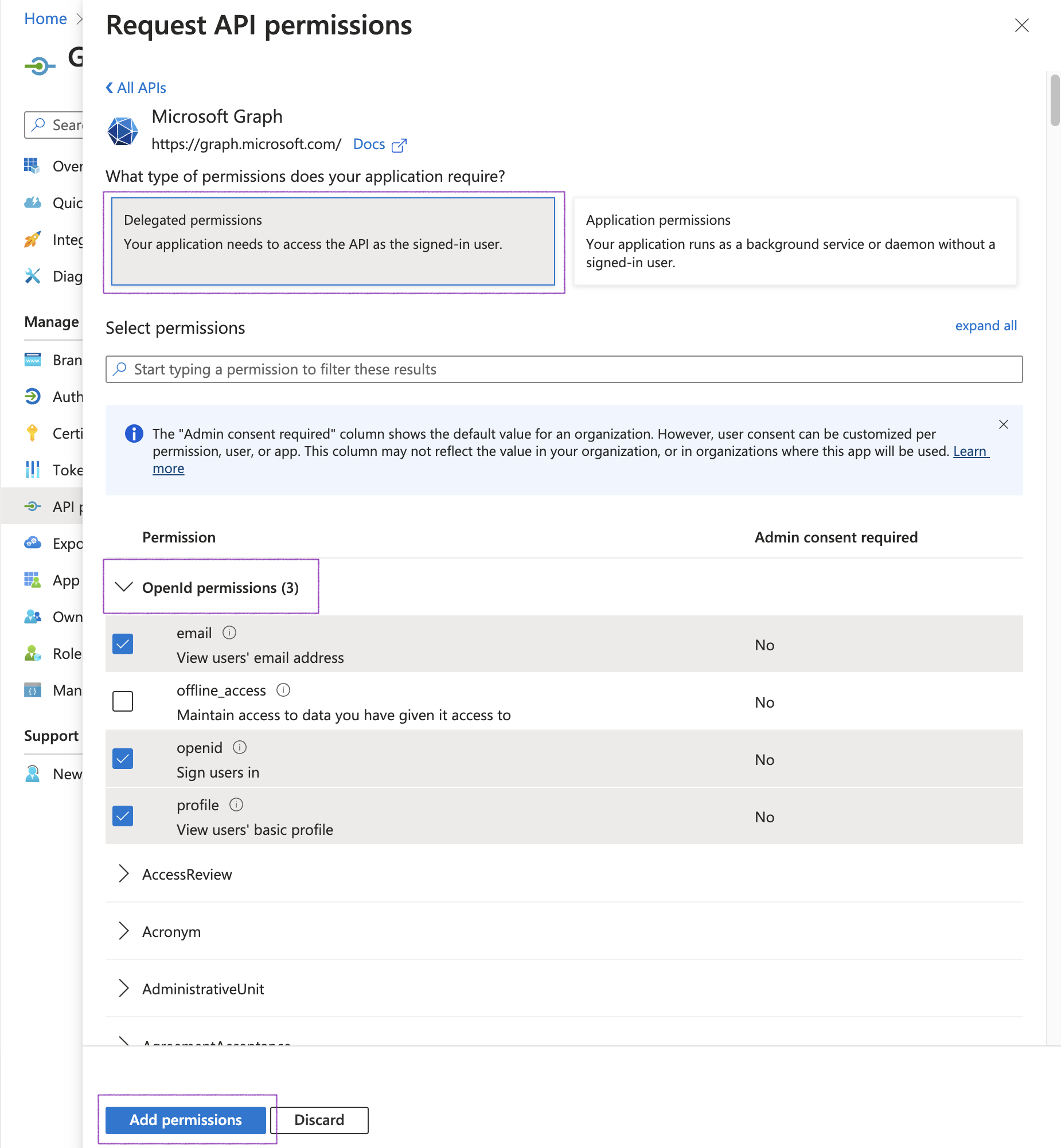

     • Select Delegated permissions and OpenId, then ensure to enable the following scopes:
       • email
       • openid
       • profile
       •

         OpenID Scopes

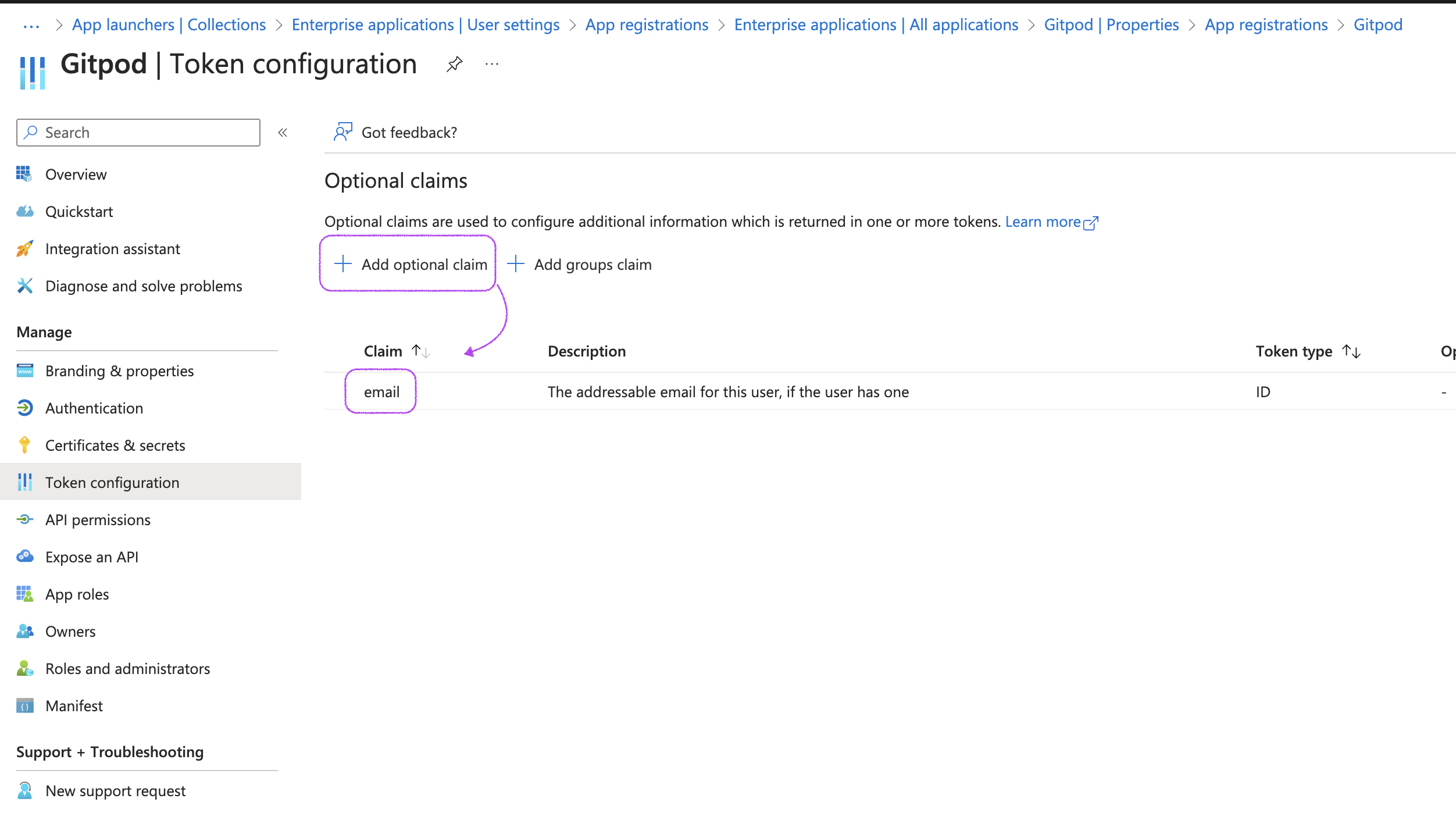

   • Although the email claim is part of the standard OIDC specification, depending on the setup, Microsoft Entra ID does not include it by default in ID tokens. Under Manage, select Token configuration and fix this:
     • Click Add optional claim
     • Add the email scope
     •

       Add email scope
6. Obtain Issuer URL from Endpoints tab
   • Navigate to the Overview page and select Endpoints

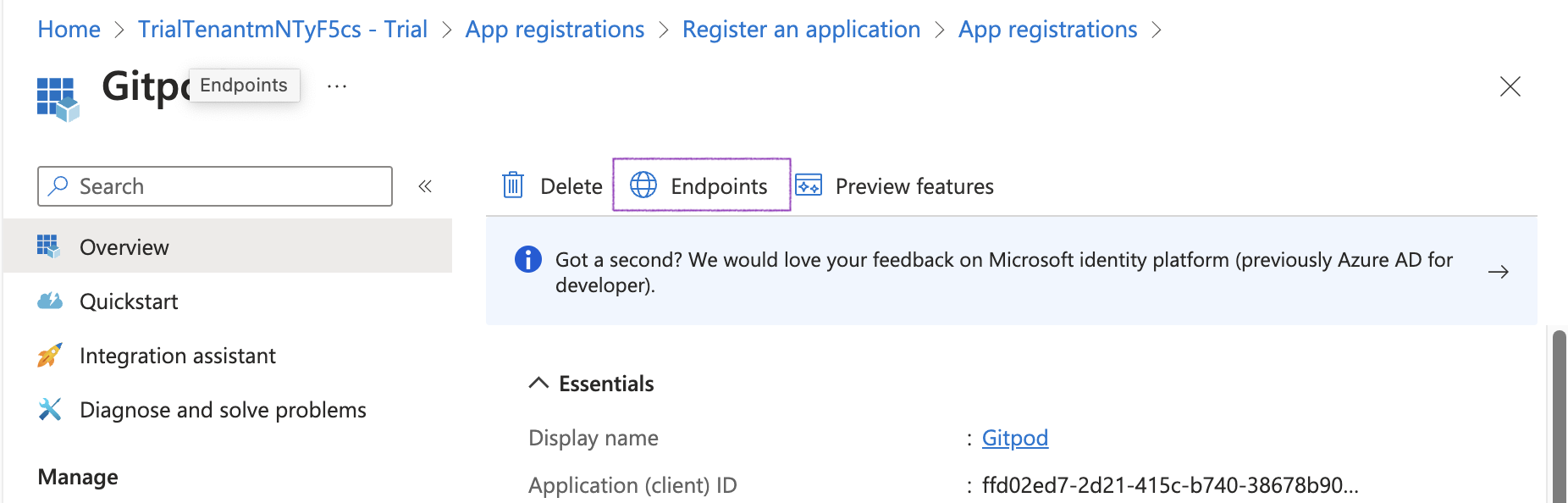

     Endpoints tag

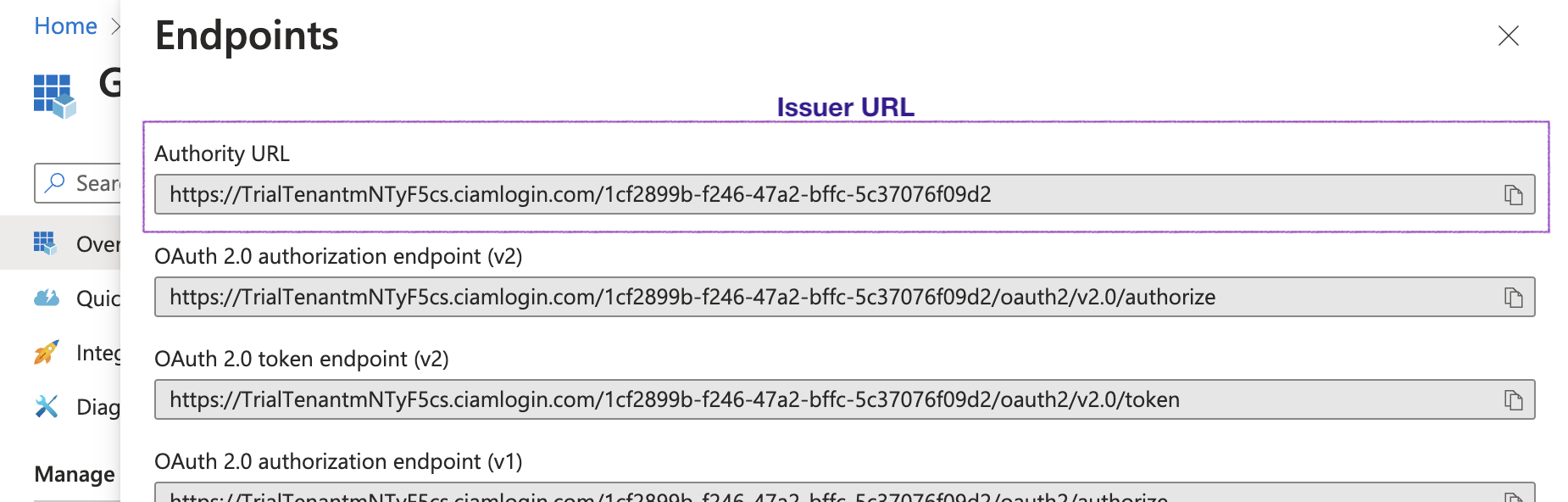

   • Copy the Authority URL to be used as Issuer URL in Gitpod’s SSO setup


     Endpoints tag

     Note: Validate the Issuer URL by checking the OIDC Discovery location. In some configurations, the Issuer URL needs to be adjusted.

     • If the Authority URL reads like https://login.microsoftonline.com/{tenant}/v2.0, the OIDC Discovery location is https://login.microsoftonline.com/{tenant}/v2.0/.well-known/openid-configuration. Open this URL in your browser and check the issuer field.
     • Check the issuer field in the OIDC Discovery output and ensure this matches the Authority URL (Issuer URL). If not, e.g. if it reads like https://sts.windows.net/{tenant}, please try again with{authority_url}/v2.0/.well-known/openid-configuration and use {authority_url}/v2.0 as Issuer URL in Gitpod’s SSO setup.
7. Obtain the Client ID from the Overview page
   • Navigate to the Overview page and copy the Application (client) ID value to be used as Client ID in Gitpod’s SSO setup


     Client ID
8. Continue with the SSO configuration in Gitpod: Clicking Save & Test
