Troubleshooting AWS runners

• Review the common problems.
• If the issue persists, reach out to support.

​

Contacting Support

• Any error messages and relevant screenshots.
• Runner ID and Version and AWS Region.
• Runner Logs.


  Report Issue

​

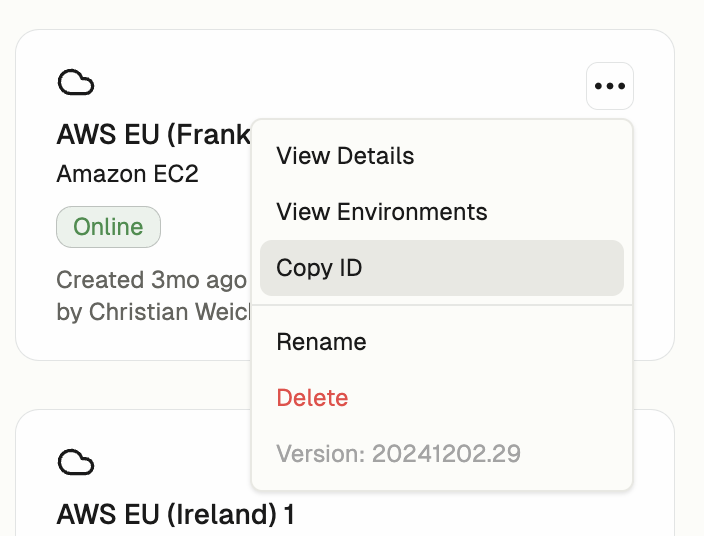

Copy Runner ID and Version

• Navigate to Settings > Runners.
• Locate your Runner card.
• Click ... in the top right corner and select Copy ID.
• The Runner Version is displayed as the last item in the menu.


  Find Runner ID and Version

​

Find CloudFormation Stack

• Navigate to Settings > Runners.
• Open the Runner card to find the Stack Name, URL, and region.

​

Retrieve Runner Logs (ECS Task Logs)

​

Using ECS Console

• Navigate to the AWS ECS console.
• Locate the cluster by the stack name.
• Select the service associated with the Runner.
• Go to the Tasks tab and find the most recent failed or active task.
• Click the task ID to open the details.
• Check the Logs tab or find the CloudWatch log stream.

Note that each task has two log groups: one for the Runner itself and another for Prometheus (monitoring); we need the former.

​

Using AWS CLI

1. To list all clusters and find your cluster name by the stack name:

aws ecs list-clusters

2. To list tasks in a specific cluster and find your task ID:

aws ecs list-tasks --cluster <cluster-name>

3. Once you have the cluster name and task ID, you can view the logs for the Runner:

aws ecs describe-tasks --cluster <cluster-name> --tasks <task-id>

​

Monitoring and Metrics

​

Common Problems

​

CloudFormation Stack Fails

• Symptoms:
  • Stack Event Status: ROLLBACK_COMPLETE or ROLLBACK_IN_PROGRESS due to missing VPC, availability zones, or subnets.
  • Stack Event Status Reasons:
    • Parameter validation failed: parameter value for EC2RunnerInstancesSubnet does not exist.
    • Parameter validation failed: parameter value for parameter name EC2RunnerInstancesSubnet does not exist.
    • Parameter validation failed: parameter value for parameter name EC2RunnerAzs does not exist.
• Diagnostics:
  • On the initial page of the CloudFormation stack creation, ensure you select a VPC, at least one availability zone, and a subnet.
  • Choose subnets across multiple availability zones for fault tolerance.

​

Runner Task Fails

• Symptoms:
  • Stack Event Status: CREATE_FAILED or ROLLBACK_IN_PROGRESS because the Runner task fails to launch or is stuck in a pending state.
  • Stack Event Status Reason: ECS Deployment Circuit Breaker was triggered.
  • Runner task fails initialization with errors such as ResourceInitializationError: ....
  • Secrets Manager or other AWS services are inaccessible to the Runner.
  • The Runner cannot pull container images or resolve DNS queries.
• Diagnostics:
  • Verify that the VPC has an Internet Gateway or NAT Gateway configured.
  • Update the route tables to direct public subnets to the Internet Gateway and private subnets to the NAT Gateway.
  • For private subnets, add VPC endpoints for services like Secrets Manager, S3, and ECR.
  • Confirm that security groups allow outbound traffic to the required services.

​

Instance Type Not Available

Some zones, like us-east-1d and us-east-1e, have been reported to experience resource shortages more frequently. If possible, avoid using these zones exclusively and instead install your runners across multiple zones or regions.

1. Install a Runner to a Different Region:
   • Some instance types may be unavailable in certain regions or zones due to resource constraints. Refer to AWS instance type availability for details. If necessary, install runners to use a different AWS region that supports your preferred instance type.
2. Select Multiple Availability Zones:
   • When installing a Runner using the AWS CloudFormation Stack, ensure that you select multiple subnets. For example, instead of restricting your Environment to only the subnet corresponding to us-east-1e, include subnets corresponding to us-east-1a and us-east-1b zones to improve availability.
     • You can also update the existing stack parameters.
3. Use an Alternate Instance Type:
   • If the desired instance type (e.g., m6i.xlarge) is unavailable, consider using a different instance type, such as c5.xlarge, which may have better availability.
   • To update, create a new Environment class using the alternate instance type and disable the existing class.
4. Retry Later:
   • Instance availability can be transient. If none of the above options resolve the issue, wait and try again later, as AWS resources might become available after a brief period.

​

Unexpected Costs

• Symptoms:
  • You notice unexpected charges in your AWS bill that you believe are related to the Runner infrastructure.
  • You continue receiving bills for resources even after deleting a Runner.
• Diagnostics:
  • Use the Controls for Managing Costs guide to investigate the specific AWS resources contributing to the charges.
  • After deleting a runner, verify that the associated CloudFormation stack has been fully deleted. Additionally, check for any residual resources such as EC2 instances or EBS volumes associated with Environment IDs, and manually delete them if necessary to avoid ongoing costs.

​

AWS SSM Access Requirements

• Symptoms:
  • New Environments fail to start with error message: AWS account policy blocks ssm:SendCommand, which is required for starting Environments. See our docs for details on how to resolve this: https://www.gitpod.io/docs/gitpod/runners/aws/troubleshooting#aws-ssm-access-requirements
  • Runner is marked as degraded with the above error message
  • Devcontainer build cache credentials cannot be set/refreshed, resulting in slower startup times
• Diagnostics:
  • Gitpod Environments require AWS Systems Manager (SSM) access to properly initialize and manage development Environments.
  • The ssm:SendCommand permission is used to send the initial Environment configuration and refresh devcontainer build cache credentials in Environments, and ssm:GetCommandInvocation to verify the result.
  • These permissions can be blocked by Service Control Policies (SCPs) at the AWS account level.
  • Check if your AWS account has Service Control Policies (SCPs) that might be blocking SSM access. The Runner role (containing gitpodflexrunnerrole) must be able to run these commands against EC2 instances in the account.
  • Test if SSM access is working by attempting to send a command to an EC2 instance or starting a new Environment.
• Resolution:
  • Contact your AWS administrator to review the current SCP that’s blocking SSM access.
  • Request an exception for the Gitpod Runner’s IAM role to allow:
    Copy

    Ask AI

    {
    	"Version": "2012-10-17",
    	"Statement": [
    		{
    			"Effect": "Allow",
    			"Action": ["ssm:SendCommand", "ssm:GetCommandInvocation"],
    			"Resource": [
    				"arn:aws:ec2:*:*:instance/*",
    				"arn:aws:ssm:*:*:command/*"
    			]
    		}
    	]
    }


    Alternatively, if your existing policy denies the permission for all accounts, add an exception for your Gitpod Runner account:
    Copy

    Ask AI

    {
    	"Version": "2012-10-17",
    	"Statement": [
    		{
    			"Effect": "Deny",
    			"Action": ["ssm:SendCommand", "ssm:GetCommandInvocation"],
    			"Resource": [
    				"arn:aws:ec2:*:*:instance/*",
    				"arn:aws:ssm:*:*:command/*"
    			],
    			"Condition": {
    				"StringNotEquals": {
    					"aws:PrincipalAccount": [
    						"<GITPOD_RUNNER_AWS_ACCOUNT_ID>"
    					]
    				}
    			}
    		}
    	]
    }


• Security Note:
  • The SSM commands are only used for Environment initialization and configuration.
  • They are sent over encrypted channels and follow AWS security best practices.

​

Network Connectivity Issues

​

Common Network Issues

1. Verify security group configurations
   • Ensure port 29222 is open for SSH access to development Environments
   • Check that outbound rules allow HTTPS traffic to required endpoints
   • Verify internal communication on port 22999 is allowed
2. Check route table configurations
   • Confirm routes to internet gateway (for public subnets) or NAT gateway (for private subnets)
   • Verify default routes are properly configured
3. Validate network ACL settings
   • Ensure Network ACLs aren’t blocking required traffic
   • Check both inbound and outbound rules
4. Confirm DNS resolution is working
   • Test DNS resolution for app.gitpod.io and *.us01.gitpod.dev
   • Verify VPC DNS resolution and DNS hostnames are enabled
5. Test connectivity to Gitpod services
   • From an EC2 instance in your Runner’s subnet, test connectivity to required endpoints
   • Use tools like curl or telnet to verify connectivity

​

Health Endpoint Connectivity Test

# Test health endpoint connectivity (returns HTTP 200 on success)
curl -v https://<your-domain>/_health

• DNS resolution is working correctly
• Load balancer is accessible from your network
• SSL/TLS certificate is properly configured
• Basic network connectivity is established

• DNS configuration and propagation
• Security group rules allowing HTTPS traffic
• Load balancer health and target group status
• SSL certificate validity and domain matching

​

Required Endpoints Connectivity Test

# Test HTTPS connectivity to Gitpod services
curl -I https://app.gitpod.io
curl -I https://api.us01.gitpod.dev

# Test connectivity to AWS services
curl -I https://public.ecr.aws
curl -I https://s3.amazonaws.com

​

Restarting the Runner After Networking Changes

Using the AWS Console

1. Navigate to the AWS ECS console
2. In the left sidebar, click Clusters
3. Locate and click on the cluster with your stack name (found in Settings > Runners in Gitpod)
4. In the Services tab, click on the service associated with your Runner
5. Click the Update button
6. In the Deployment configuration section, check the box for Force new deployment
7. Click Update at the bottom of the page
8. ECS will start a new task with the updated networking configuration and gracefully stop the old one

Using AWS CLI

# Get your cluster name and service name
aws ecs list-clusters
aws ecs list-services --cluster YOUR_CLUSTER_NAME

# Force a new deployment
aws ecs update-service \
  --cluster YOUR_CLUSTER_NAME \
  --service YOUR_SERVICE_NAME \
  --force-new-deployment

​

Verification Steps

1. Check Runner status in Gitpod
   • Go to Settings > Runners in your Gitpod dashboard
   • Verify the Runner shows as “Connected”
2. Test Environment creation
   • Create a new Environment using the Runner
   • Verify the Environment starts successfully
3. Monitor CloudWatch logs
   • Check ECS task logs for any connectivity errors
   • Look for successful connections to Gitpod services
